啟動馬達

John Deere約翰迪爾強鹿6068  6.8L柴油發動機啟動馬達零件圖冊

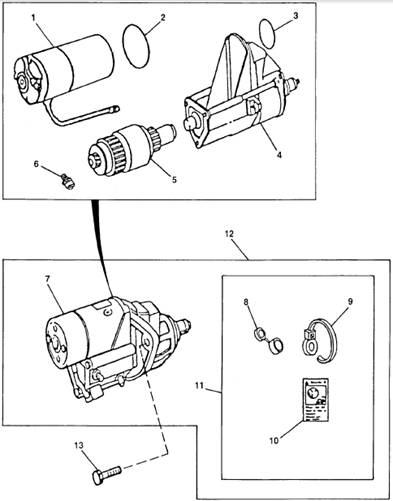

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 .................. MOTOR 1 X X X

2 R135509 SEAL 1 X X X

3 R135510 O-RING 1 X X X

4 RE70486 SWITCH 1 X X X (LH)

RE70680 SWITCH 1 X X X (RH)

5 RE70487 CLUTCH 1 X X X

6 RE71256 SCREW, WITH WASHER 1 X X X M5 X .8

7 .................. STARTER MOTOR 1 X X X (LH) (JD RE69704)

.................. STARTER MOTOR 1 X X X (RH) (JD RE70474)

8 .................. COVER 1 X X X

9 R96703 TIE BAND 1 X X X

10 T146102 LABEL 1 X X X

11 RE70756 KIT 1 X X X

12 RE70957 STARTER MOTOR KIT 1 X X X (LH)

RE70960 STARTER MOTOR KIT 1 X X X (RH)

13 19M7786 SCREW 3 X X X M10 X 30

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 R135431 COVER 1 X X X

2 R135432 NUT 1 X X X

3 T146102 LABEL 1 X X X

4 RE507638 BENDIX DRIVE 1 X X X

5 RE507637 SOLENOID 1 X X X

6 .................. STARTER MOTOR 1 X X X

7 RE507639 STARTER MOTOR KIT 1 X X X

8 R503419 STUD 1 X X X

9 12M7033 LOCK WASHER 1 883377- X X X 10.500 MM, (DUBUQUE T0)

10 19M7786 SCREW 2 X X X M10 X 30

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS

1 R135431 COVER 1 X

2 R135432 NUT 1 X

3 T146102 LABEL 1 X

4 RE507665 BENDIX DRIVE 1 X

5 RE507637 SOLENOID 1 X

6 .................. STARTER MOTOR 1 X

7 RE507670 STARTER MOTOR KIT 1 X

8 19M7786 SCREW 2 X M10 X 30

9 12M7033 LOCK WASHER 1 X 10.500 MM
