皮帶張緊輪

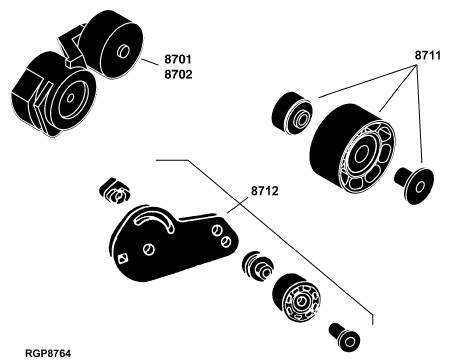

John Deere約翰迪爾強鹿6068  6.8L柴油發動機皮帶張緊輪零件圖冊

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 19M8131 SCREW 1 X X X M10 X 70

2 R503813 BOLT 1 X X X (LH)

3 RE70536 PULLEY 1 X X X (SUB FOR RE59702)

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 RE70536 PULLEY 1 X X X (SUB FOR RE59702)

2 R503813 BOLT 1 X X X (LH)

3 19M8131 SCREW 1 X X X M10 X 70

4 R500321 SPACER 1 X X X

5 19M7801 SCREW 1 X X X M8 X 60

6 34M7061 SPRING PIN 1 X X X 8 X 20 MM

7 R132168 SUPPORT 1 X X X (SUB FOR R122270)

8 19M7801 SCREW 1 X X X M8 X 60
